Betrouwbaar, Snel, Eenvoudig en Cloud Ready

De Nimble Storage Predictive Flash platform levert absolute prestaties, non-stop beschikbaarheid en cloud-achtige behendigheid door middel van voorspellende analyses en een Unified Flash FabricTM. Met prestaties boven 1,2 miljoen IOPS bij sub-milliseconde latentie uw applicaties krijgen een nieuw leven. De Nimble Storage Unified Flash Fabric combineert All Flash en Adaptive Flash (hybride) arrays in een enkele beheerde entiteit met gemeenschappelijke data diensten. Elk type array is geoptimaliseerd voor een bepaalde datacenterbehoefte. Nimble All Flash-arrays leveren absoluut prestaties voor die latency-gevoelig VDI, OLTP en bedrijfskritieke database toepassingen. Nimble Adaptive Flash-arrays stelt u in staat, om op een kosteneffectievere manier, opslag dynamisch toe te wijzen om te voldoen aan de fluctuerende behoeften van bedrijfskritische applicaties. Door All Flash en Adaptive Flash in één te combineren, elimineert de Unified Flash Fabric de pijnlijke trade-off die ondernemingen moeten maken tussen de kosten van All Flash en de wens om overal flash te gebruiken.

Demo Aanvragen

De Kracht van Voorspellend

HPE Nimble Storage maakt gebruik van flash-opslag en voorspellende analyses om een ​​gegarandeerde beschikbaarheid van meer dan 99,9999% te realiseren. Maar snellere opslag alleen is niet genoeg, omdat 54% van de problemen niet direct door opslag wordt veroorzaakt.

99.9999%

Gegarandeerde beschikbaarheid over de gehele installed base van Nimble.

86%

Van de problemen automatisch voorspeld en opgelost.

54%

Problemen die zijn opgelost, vallen buiten de opslag.

Cloud Ready wanneer u dat ook bent.

Ervaar Hybrid IT. Verplaats eenvoudig gegevens tussen de openbare cloud en uw datacenter met HPE Cloud Volumes.

Cloud on-ramp

Vermijd trage, handmatige migraties. Eenvoudig opschalen, verplaatsen en back-uppen van gegevens tussen uw datacenter en meerdere clouds met HPE Cloud Volumes.

Geen Lock-in

Voorkom vendor lock-in en grote uitgavekosten. Multicloud-opslagservice van Enterprise-kwaliteit ondersteunt toepassingen in AWS en Azure.

Enterprise-grade

Miljoenen keren duurzamer dan opslag in native cloud elastic block storage. Inclusief datacenter-to-cloud-replicatie, instant snapshots, klonen en 256-bits granulaire codering.

OverAll-Flash

Multicloud flash fabric zorgt voor een eenvoudig te gebruiken, single flash architectuur in een multicloud omgeving. Implementeer workloads flexibel op primaire opslag, secundaire opslag en in de public cloud. Migreer en beheer eenvoudig gegevens tussen on-premises en off-premises locaties.

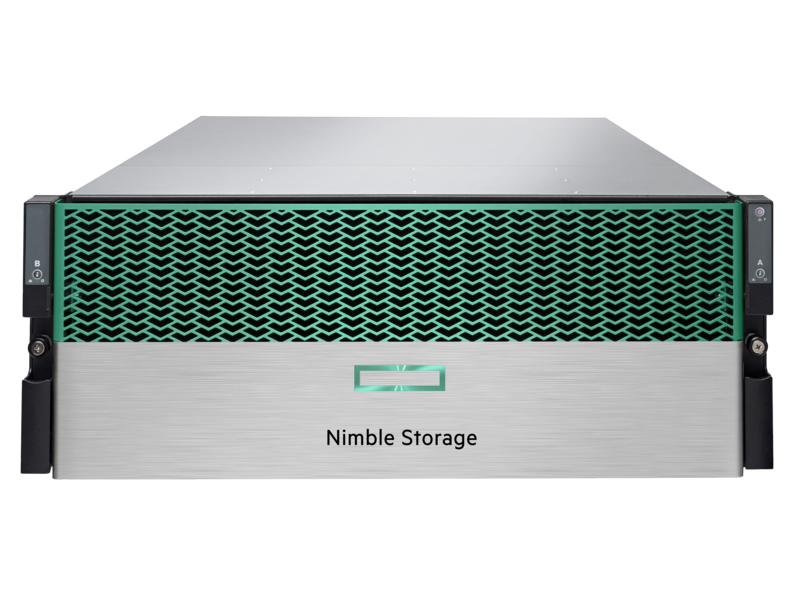

HPE Nimble Storage All Flash Arrays

Ervaar de kracht van Predictive HPE Nimble All Flash Arrays. Combineer een voor flash-geoptimaliseerde architectuur met HPE InfoSight Predictive Analytics voor snelle, betrouwbare toegang tot gegevens en een gegarandeerde beschikbaarheid van 99,9999%. Alle Flash-arrays kunnen eenvoudig worden geïmplementeerd en gebruikt – en zijn klaar voor de cloud – en bieden een eenvoudige oprit naar de cloud via HPE Cloud Volumes. Ondersteund door ons Timeless Storage-programma, is optionele software inbegrepen en zijn upgrades van vorkheftrucks verleden tijd.

Capacity

AF40
10 – 167 TiB raw capacity
7 – 124 TiB usable capacity
36 – 620 TiB effective capacity

AF60
10 – 502 TiB raw capacity
7 – 370 TiB usable capacity
36 – 1853 TiB effective capacity

AF80
21 – 1005 TiB raw capacity
15 – 741 TiB usable capacity
75 – 3706 TiB effective capacity

Drive descriptionSATA SSDs 240 GB SSD 480 GB SSD 960 GB SSD 1.92 TB SSD 3.84 TB SSD
EnclosuresUp to 2 all-flash expansion shelves (depending on the model)
Maximum drives per enclosure48 (Two banks of 24 SSD drives per base array)
Host interface16 Gb/s Fibre Channel 8 Ports 10 Gb/s iSCSI 8 Ports 1 Gb/s Ethernet 8 Ports 10 Gb/s Ethernet 8 Ports Maximum supported, depending on configuration
Storage controller2
Availability featuresTriple+ Parity RAID for data protection (Triple drive parity plus intra-drive parity) 99.9999% guaranteed availability Redundant HW/SW design: no single points of failure
Compatible operating systemsMicrosoft Windows® Server®
VMware ESXi™
SUSE® Linux® Enterprise Server (SLES)
Red Hat® Enterprise Linux (RHEL)
Ubuntu Server Edition LTS
Oracle Linux
Oracle Solaris
Citrix® XenServer
IBM AIX, HP-UX
For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge (SPOCK) for HPE Storage products: https://www.hpe.com/storage/spock
Minimum dimensions (H x W x D)17.58 cm x 43.9 cm x 89 cm
Weight52 kg (43 kq all-flash shelf)
WarrantyHPE Nimble Storage arrays come with the following warranties:
1 year, parts-only warranty for hardware components
90 day, software updates for defects
Additionally, HPE Nimble Storage will provide phone support for replacing a defective part.
Additional support coverage is required for HPE Nimble Storage arrays.
NOTE: For hardware warranty claims, defective part must be received before replacement parts are shipped.

Datasheet:

eBook:

HPE Nimble Storage Adaptive Flash Arrays

Ervaar de kracht van Predictive HPE Nimble Storage Adaptive Flash hybrid storage arrays. Combineer een voor flash-geoptimaliseerde architectuur met HPE InfoSight Predictive Analytics voor snelle, betrouwbare toegang tot gegevens en een gegarandeerde beschikbaarheid van 99,9999%. Alle Flash-arrays kunnen eenvoudig worden geïmplementeerd en gebruikt – en zijn klaar voor de cloud – en bieden een eenvoudige oprit naar de cloud via HPE Cloud Volumes. Ondersteund door ons Timeless Storage-programma, is optionele software inbegrepen en zijn upgrades van vorkheftrucks verleden tijd.

CapacityHPE Nimble Storage CS-Series Adaptive Flash Arrays (capacity per array, with expansion):
Up to 1,470 TB Raw
Up to 1,185 TB Usable
Up to 2,371 TB Effective (assuming two to one data reduction ratio)
Depending on configuration. Smaller configurations available for HPE Nimble Storage CS1000H Adaptive Flash Array.
Drive descriptionLFF SAS HDDs: 1/2/4/6/10 TB drive capacities supported, depending on model.
Enclosures(6) Maximum, Expansion Shelves supported
Maximum drives per enclosure(21) HDDs and Flash Cache per CS-Series base array or CS-Series Expansion Shelf.
Host interfaceOnboard 1GbE/10GbE iSCSI (4) Ports and
Optional 1GbE iSCSI (24) Ports or
10GbE iSCSI (24) Ports or
16 Gb/8 Gb Fibre Channel (24) Ports
Depending on configuration.
Storage controller2
Availability featuresTriple+ Parity RAID for data protection Redundant storage controllers Redundant power supplies and fans
Compatible operating systemsMicrosoft Windows Server
VMware ESXi
SUSE Linux Enterprise Server (SLES)
Red Hat Enterprise Linux (RHEL)
Ubuntu Server Edition LTS
Oracle Linux
Oracle Solaris
Citrix XenServer
IBM AIX
For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HPE Storage Products (SPOCK): https://www.hpe.com/storage/spock
Minimum dimensions (W x D x H)17.58 cm x 43.9 cm x 89 cm
Weight65 kg (CS1000H: 52 kg)
WarrantyHPE Nimble Storage arrays come with the following warranties:
1 year, parts-only warranty for hardware components
90 day, software updates for defects
Additionally, HPE Nimble Storage will provide phone support for replacing a defective part.
Additional support coverage is required for HPE Nimble Storage arrays.
NOTE: For hardware warranty claims, defective part must be received before replacement parts are shipped.

Datasheet:

eBook:

HPE Nimble Storage Secondary Flash Arrays

Wil je echt werk bereiken met je back-upgegevens? HPE Nimble Storage Met secundaire Flash-arrays kunt u uw back-upgegevens aan het werk zetten. De systemen bieden een enkel platform voor back-up en noodherstel en met flash-geoptimaliseerde prestaties kunnen ook echte workloads worden uitgevoerd, zoals ontwikkeling / testen en analyses. Ze leveren aanzienlijke besparingen op gegevensefficiëntie door always-on deduplicatie en compressie, en zijn een derde van de kosten voor back-up en DR bij gebruik met all-flash. Secundaire Flash-arrays kunnen worden geïntegreerd met Veeam-beschikbaarheidssoftware om zowel het gegevensbeheer te vereenvoudigen en te verbeteren, arrayfuncties toegankelijk te maken via de Veeam-gebruikersinterface en het versnellen van back-upverificatie.

CapacityHPE Nimble Storage SF-Series Secondary Flash Arrays (capacity per array, with expansion):
Starting at 21 TB Raw
16 TB Useable
128 TB Effective, up to 210 TB Raw
up to 169 TB Usable
up to 3 PB Effective (Assumes typical 3x to up to 18x savings, based on Backup retention policy, on a Veeam target)
Starting configuration based on HPE Nimble Storage SF100 Secondary Flash Array.
Drive descriptionUp to (21) LFF MDL SAS HDDs
1/2/4/6/10TB drive capacities supported, depending on model. (3 or 6) SFF SSD
Depending on configuration. 480/960/1920/3840GB SSD Cache capacities supported, depending on model.
Enclosures(2) Maximum Expansion Shelves supported.
Maximum drives per enclosure(21) HDDs and Flash Cache per base array or SF Series Expansion Shelf.
Host interface1 GbE/10GbE iSCSI (4) Ports and
1 GbE/10GbE iSCSI (4) Ports or
1 GbE/10GbE iSCSI (4) Ports and
10 GbE iSCSI (4) Ports or
1 GbE/10GbE iSCSI (4) Ports and
16 Gb/8 Gb Fibre Channel (4)
Depending on configuration.
Storage controller2
Availability featuresTriple+ Parity RAID for data protection Redundant storage controllers Redundant power supplies and fans
Compatible operating systemsMicrosoft Windows Server
VMware ESXi
SUSE Linux Enterprise Server (SLES)
Red Hat Enterprise Linux (RHEL)
Ubuntu Server Edition LTS
Oracle Linux
Oracle Solaris
Citrix XenServer
IBM AIX
For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HPE Storage Products (SPOCK): https://www.hpe.com/storage/spock
Minimum dimensions (W x D x H)W445mm x D673mm x H175mm
Weight48 kg
WarrantyHPE Nimble Storage arrays come with the following warranties:
1 year, parts-only warranty for hardware components
90 day, software updates for defects
Additionally, HPE Nimble Storage will provide phone support for replacing a defective part.
Additional support coverage is required for HPE Nimble Storage arrays.
NOTE: For hardware warranty claims, defective part must be received before replacement parts are shipped.

Datasheet:

Veeam Software:

eBook:

Geïnteresseerd?

Wilt u meer weten? Neem vrijblijvend contact met ons op!
